Description

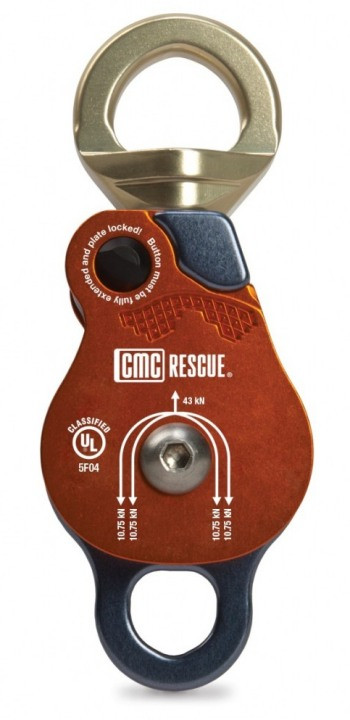

CMC ProSwivel Pulleys combine a swivel and pulley into a single device with a moving sideplate that allows rope loading/unloading while attached to the anchor. CMC ProSwivel Pulleys are all certified to NFPA standards.
Details
Available in sheave size 1.5", this pulley is an excellent option for mechanical advantage systems for hauling and ascending, and works well in combination with high anchors, tripods, and redirects.
Features
- Combined swivel & pulley reduces system length, allowing more travel
- Pivoting sideplate allows rope loading without disconnecting from anchor
- Double-action detent button prevents accidental opening of the sideplate
- Sheave is mounted on sealed ball bearings for maximum efficiency
- Rotating swivel aligns rope with the direction of pull
- Swivel can be secured using rope, web, or carabiners
- Ergonomic design for anchoring and loading with one hand
- CNC machined for optimal strength & weight
- Prusik minding options facilitate progress capture
- Double sheave pulleys equipped with integrated becket
- Compatible with rope up to 13 mm (1/2 in)
- Ideal for rescue, work at height, and tree care
- Patented, USA Made, time-tested, and proven
Specifications
- Weight: 14.6 oz (415 g)
- Pulley Type: Double Sheave
- Sheave Material: Aluminum
- Height x Width: 6.3" x 25.5" (160mm x 63mm)
- Color: Bronze / Slate
- NFPA Rating: General Use
- EN Standards: EN 12278
- MBS: 36 kN (8,093 lbf)
- Manufacturer Part Number:
- 300432
- Country of Manufacture:
- US
