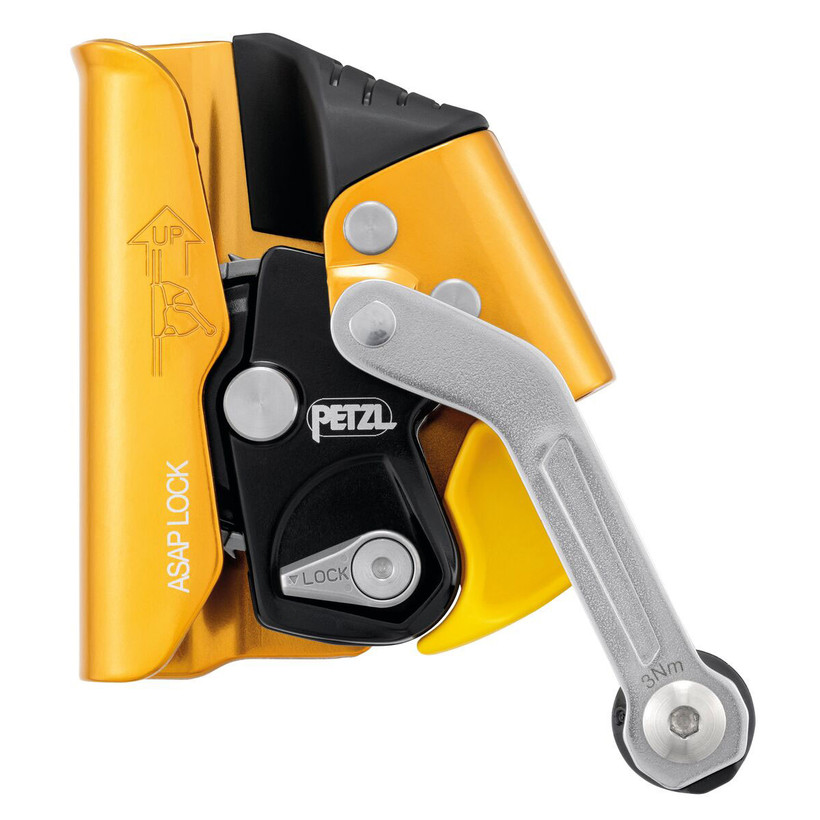

Petzl ASAP Lock

LOCK FALL ARRESTER

The integrated LOCK function allows the user to immobilize the device in order to reduce potential fall distance. The connection arm makes the system drop-resistant, so passing intermediate anchors is easier, and the safety catches simplify installation on the rope. In rescue scenarios, the ASAP LOCK must be used with the ASAP’SORBER AXESS energy absorber.

Mobile fall arrester for rope:

• Stops falls and uncontrolled descents that exceed two meters per second
• Blocks on the rope even if grabbed during the fall
• Works on vertical, horizontal, or angled rope
• Compatible with ropes 10 to 13 mm in diameter

Toothed wheel is effective on a variety of rope conditions (frozen or muddy ropes)

Compact and easy to use:

• Easy to install and remove at any point on the rope
• Moves up or down the rope without any manual operation
• Safety catches make the device easy to install and remove from the rope
• Connection arm makes the system drop resistant when passing intermediate anchors
• Integrated LOCK function allows the user to immobilize the device to reduce the potential fall distance and keeps the rope
• from being blown upwards in very windy conditions

Use in combination with:

• ASAP’SORBER AXESS energy absorber for use in two-person rescue scenarios, up to 250 kg
• ASAP’SORBER 20/40 energy absorber, for use with a person weighing up to 140 kg

ASAP LOCK can be used as a back-up belay device in a rope access system or as a primary belay device in a fall-arrest

system

The ASAP LOCK is also available in pre-assembled kits for a ready-to-use solution, with ASAP’SORBER AXESS or

ASAP’SORBER 20 or 40 and OK TRIACT-LOCK or Bm’D TRIACT-LOCK connectors

Specifications:

• Rope compatibility: 10 to 13 mm
• Certification(s): CE EN 12841 type A, CE EN 353-2, ANSI Z359.15, GB/T 24537, XF 494 : FZL-Z-Q10/13
• CE EN 12841 type A when used with an ASAP’SORBER AXESS or ASAP’SORBER 20/40 energy absorber, and an EN 1891 type A 10 to 13 mm rope
• CE EN 353-2 when used with an ASAP’SORBER AXESS or ASAP’SORBER 20/40 energy absorber, an AXIS 11 mm rope with two sewn terminations
• ANSI Z359.15 when used with an ASAP’SORBER AXESS or ASAP’SORBER 20/40, a BEAM 11 mm rope with two sewn terminations
• Weight: 335g
• Material(s): Aluminum, stainless steel, nylon

LOCK AXESS KIT

The ASAP LOCK KIT fall-arrest kit is a pre-assembled and ready-to-use system. It includes an ASAP LOCK mobile fall arrester, an energy absorber, and a Bm’D TRIACT-LOCK carabiner with CAPTIV positioning bar. This kit is available in three versions, depending on your needs and applications.

Pre-assembled fall-arrest system

Pre-assembled kit includes ASAP LOCK mobile fall arrester, energy absorber, and Bm’D TRIACT-LOCK carabiner with

CAPTIV positioning bar, available in three versions:

• With ASAP’SORBER energy absorber 20 (B071DC00)
• With ASAP’SORBER energy absorber 40 (B071DC01)
• With ASAP’SORBER AXESS energy absorber (B071DC02)

Mobile fall arrester for rope:

• Stops falls and uncontrolled descents that exceed two meters per second
• Blocks on the rope even if grabbed during the fall
• Works on vertical, horizontal, or angled rope
• Compatible with ropes 10 to 13 mm in diameter
• Toothed wheel is effective on a variety of rope conditions

Compact and easy to use:

• Easy to install and remove at any point on the rope
• Moves up or down the rope without any manual operation
• Safety catches make the device easy to install and remove from the rope
• Connection arm makes the system drop resistant when passing intermediate anchors
• Integrated LOCK function allows the user to immobilize the device to reduce the potential fall distance and keeps the rope from being blown upwards in very windy conditions

Use:

• Up to 140 kg, single person use with the ASAP’SORBER 20 or 40
• Up to 250 kg, two-person use in rescue scenarios with the ASAP’SORBER AXESS

Rope compatibility: 11 mm

Certification(s): ANSI Z359.15 when used with an ASAP’SORBER AXESS or ASAP’SORBER 20/40, a BEAM 11 mm rope with two sewn terminations
