Description

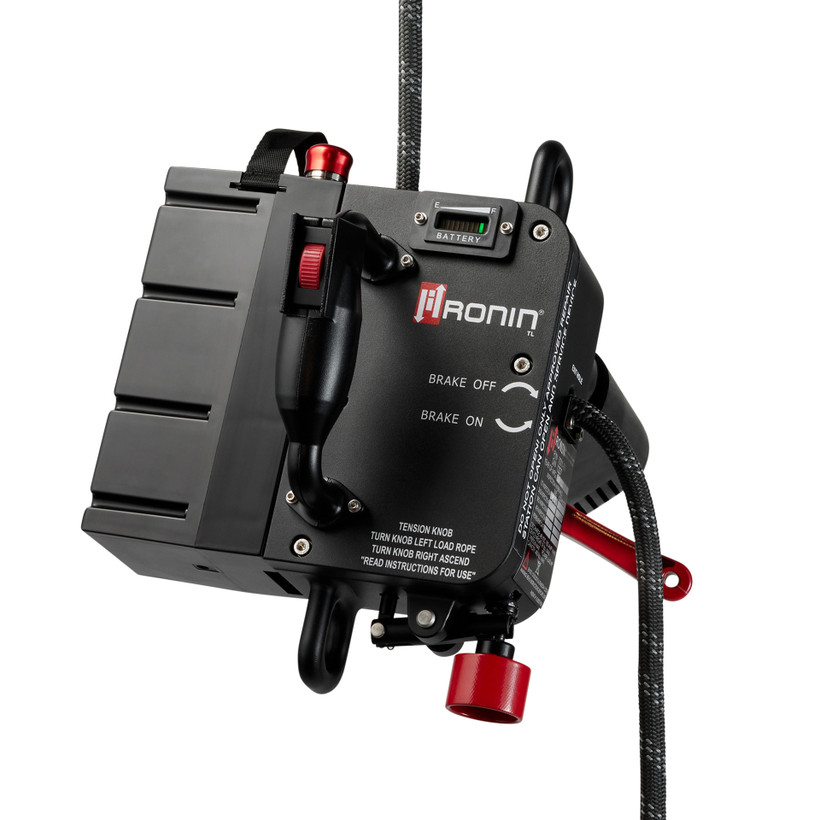

The Ronin TL, the World’s Smallest, Lightest Powered Ascender, is changing AT-HEIGHT Work. It helps prevent injury caused by fatigue and increases efficiency. It can even help extend AT-HEIGHT working careers.
Details
Despite its compact size, this powerful tool was developed to manage heavy loads in harsh environments. The automatic in-feed rope system protects against detachment while providing operational capabilities not present in other ascender options.
Details:
- 400 lbs. (181 kg) Safe Working Load
- Variable Speed Control (0.5 – 1.5 ft./sec)
- Hands-Free Braking System
- Gravity Feed Descent
- Automatic End Feed Rope Loading
- Safely Secures Rope inside the Lift & Prevents Accidental Detachment
- Allows for Angled Ascents
- Hot-Swappable Lithium Battery w/charge reading
- Water Resistant IP54 Rating
- Operating Temp. -4°F – 120 °F (-20 °C – +49 °C)
- Battery Indicator Power Selector Switch
- Allows for Battery Indicator Reading to be On or Off
KIT INCLUDES:
- 1 Ronin Lift Ascender (1 Wireless Remote, 1 Anti-Panic Handle, 1 Reverse Function)
- 1 Battery, 1 Charger, 1 Charger Cable – Type A, B or C
- 1 Hard Case w/Custom Foam
- 1 Rope Brush
- 1 Rubber Motor Protector
- 1 Perfect Burn Tip
Approved Ropes:
Teufelberger – KMIII Max | Teufelberger – X-Static (11.7 mm dia.) | Korda’s – Titania 12 (12 mm dia.) | Yale Cordage – Scandere (11.7 mm dia.) | Sterling – HTP Red (13 mm dia.) | Sterling – Tech 125 (12.7 mm dia.) | Sterling – WorkPro (12.7 mm dia.) | Marlow – Ronin HP Rope (Tech-Nora) | Marlow – ProTech 500 (Tech-Nora) |
Products Specifications:
- Width (W): 11.25 in. | (28.58 cm)
- Depth (D): 13.50 in. | (34.29 cm)
- Height (H): 11.75 in. | (29.85 cm)
- Weight: approx. 20 lbs. including battery | (9 kg)
- Construction: Aluminum, Stainless Steel and Bronze
- Finish: Powder Coat Black
- Battery Type: 48 VDC Lithium Ion Rechargeable
- Battery Life Ascent: 350 ft. of rope @ 400 lbs. | (107 m of rope @ 181.43 kg)
- Standard Battery: 700 ft. of rope @ 200 lbs. | (213 m of rope @ 90.71 kg)
- Battery Re-Charge Time: Approximately 2 hours
- Rope Type: 10-13 mm Aramid or Kernmantle Sheath Static Line Rope
- Rope Loading: End Feed
- Descent Method: Gravity Feed with Manual Brake
- Descent Speed: 2.8 ft./sec. max @ 400 lbs. | (1.06 m/sec. max @ 181 kg)
- Secondary Safety: Secondary Lock-Out Feature (Hands-Free)
- Product Certifications: CE Certified & ANSI Certified
- Reverse Functionality: For Angled Ascents, winching applications, removing rope from the system.
- Manufacturer Part Number:
- KIT1011-11
- Country of Manufacture:
- US
