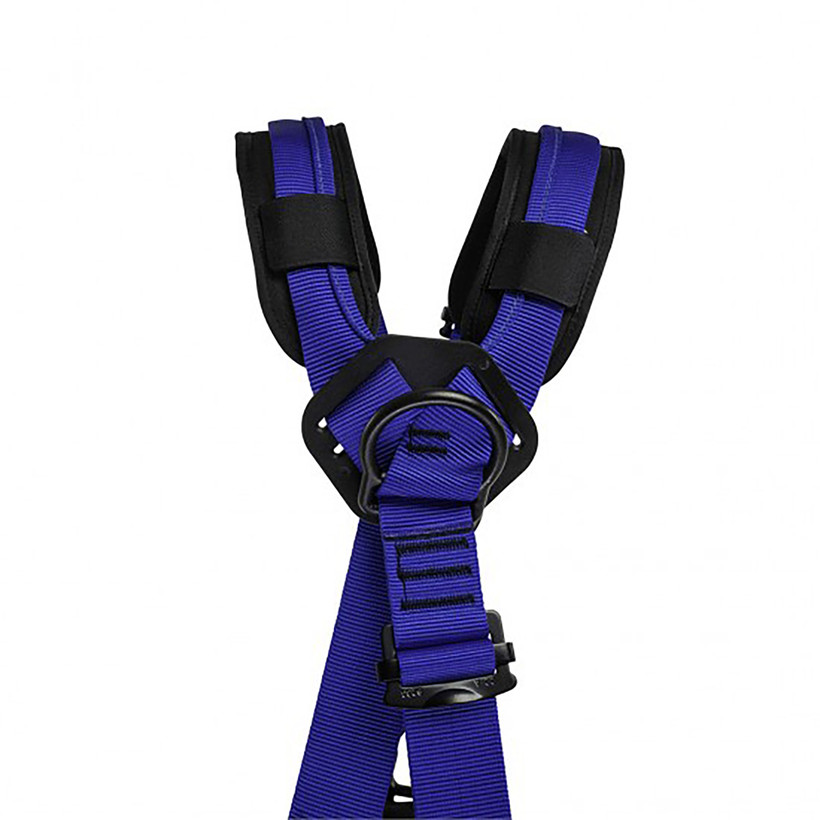

Yates Technical Rescue Harness II - Blue

A tuned down super lightweight version of the popular Voyager Harness. Great harness for entry-level technical rescue, rope access, short-haul, and basic rope rescue uses. Waist belt portion and leg pads of the harness use smaller and thinner padding material to save weight and reduce bulk still providing excellent comfort and support. New Stab-Lock ANSI Z359.1 certified quick connect leg buckles are used for ease of donning. Leg pad orientation can be adjusted to allow the user to obtain a perfect placement of the leg pad system to accommodate personal preferences. Dorsal D ring is easily adjustable on the rear of the chest. Attachment points at waist, chest, and back (dorsal). Rear haul/tag line attachment 3600 lbf. webbing loop. Shoulder straps are specially tailored to reduce the chafing of the neck. Weight 4lb.

• Sizes S/M, L/XL
• Now comes with contoured shoulder pads (item 414)
• UL Classified to meet NFPA 2500-2022 edition standards
• UL Classified ANSI/OSHA Z359.11-2021 and CAN/CSA Z259.10-18 harness standards

SPECIAL NOTICE ON STERNAL ATTACHMENT OF LANYARD FOR FALL ARREST.

ANSI Z359.11-2014 Sternal Attachment
3.2.2 Sternal.
The sternal attachment may be located as shown in Figure 4 and used as an alternative fall arrest attachment in applications where the dorsal attachment is determined to be inappropriate by a competent person and where there is no chance to fall in a direction other than feet first.
E3.2.2 See Figure 2(a) & 4. The sternal attachment element should be used only when the likely fall distance is not greater than 2 ft.
3.2.2.2 When loaded at the sternal attachment to arrest a fall, the design of the FBH (full body harness) shall direct load through the shoulder straps supporting the user and around the thighs.

Size      Color         Waist Size    Height            Weight

S/M     Blue              26-36      4'10"-5'10"      90-160lbs.

L/XL    Blue             34-45        5'5"-6'5"       150-310lbs.
