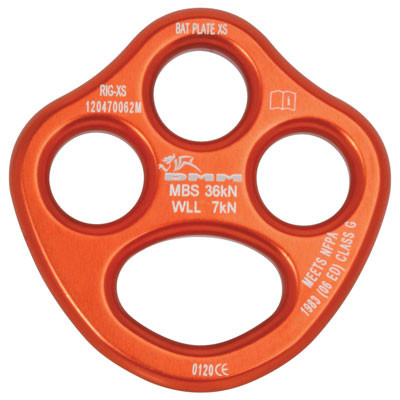

Description
Orange, 36kN MBS, 7kN WLL
Details
• Textile friendly surfaces with large radii
• Centralized connection point for stable rescuer attachment
• Can be bolted together for '100% redundancy' in system
• CNC machined from high strength heat treated Aluminum
• Anodized to BS EN 7599:2010 AA10 Sealed for corrosion protection and identification
• Conforms to EN795(b):2012 and NFPA 1983 (2012 Ed) Class G
• Individually marked for traceability
DMM Rigging Hub & Plate User Instructions
• Centralized connection point for stable rescuer attachment
• Can be bolted together for '100% redundancy' in system
• CNC machined from high strength heat treated Aluminum
• Anodized to BS EN 7599:2010 AA10 Sealed for corrosion protection and identification
• Conforms to EN795(b):2012 and NFPA 1983 (2012 Ed) Class G
• Individually marked for traceability
DMM Rigging Hub & Plate User Instructions
- Certifications:
- CE 0120
- Height:
- 2.44" (62mm)
- Color:
- Orange
- Length:
- 2.4 in
- Material:
- Aluminum
- Tensile Strength:
- 8,092 lbs ( 35.9 kN )
- Width:
- 0.39 in
- WLL:
- 809 lbs (3.5 kN)
- Country of Manufacture:
- GB
- Manufacturer Part Number:
- RIG-XS-OR
- Product Type:
- Plates
- NFPA Certified:
- No
