Petzl REEVE

$199.99
SKU:
56000
UPC:
3342540839441

A simple and clean solution for building highlines that limits the number of connectors in the system.

$199.99
Adding to cart... category.add_cart_announcement

Description

A simple and clean solution for building highlines that limits the number of connectors in the system.

Details

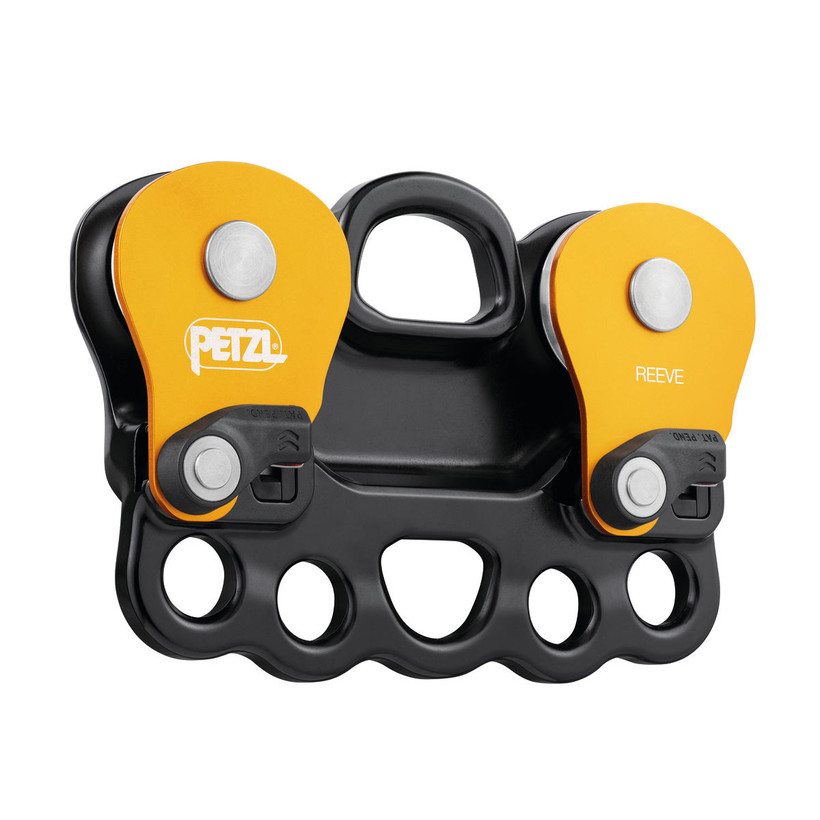

An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design.

Operations and efficiency are optimized:

  • Triple-action opening of moving side plates, possible even with gloves
  • Red indicators provide a visual warning when the side plates are not correctly locked
  • Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency
  • Possible to rig the system before installing it on the main line
  • Multiple configurations and connections are possible:
  • System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance
  • Pulley can be used in a haul system
  • Hole design allows ropes or slings to be threaded for direct connection
  • 19 mm holes allow locking sleeves of most carabiners to pass through
  • The odd number of attachment holes enables the system to be centered and balanced
  • Up to three people can be connected at the same time

Specifications:

  • Weight: 650 g
  • Certification(s): CE EN 12278, NFPA 1983 General Use
  • Material(s): Aluminum, stainless steel, nylon
  • Min. rope diameter: 7 mm
  • Max. rope diameter: 13 mm
  • Sheave type: Sealed Ball Bearings
  • Sheave diameter: 38 mm
  • Working Load Limit: 4 x 2 kN = 8 kN
  • Breaking strength: 36 kN
  • Efficiency: 95 % that limits the number of connectors in the system.
Country of Manufacture:
FR
Manufacturer Part Number:
P005AA00
